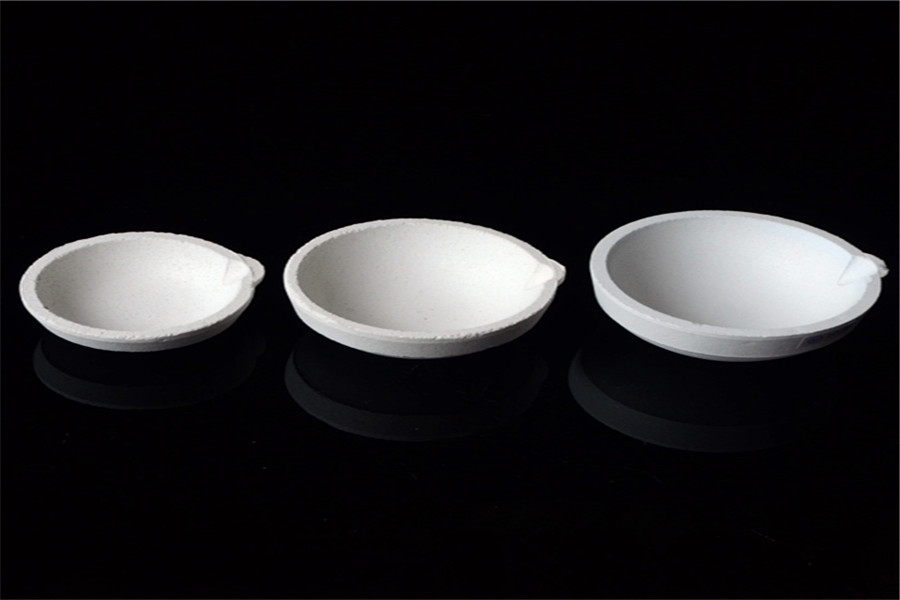

Fused silica melting crucible, quartz smelting crucible bowl for gold and platinum

Fused silica melting crucible, quartz smelting crucible bowl for gold and platinum

Category:

Fused Silica crucible


Contact us

Product description



Product introduction:

Selected quality quartz as materials,combined with advanced ceramic processing workmanship,mainly used for melting platinum , gold , silver ,copper and other high temperature alloy ,high purity, anti-corrosion,anti strong acid and strong alcali ,good hardness,high thermal shock resistance. The main component is SiO2 ≥80%,  Al2O3 (≤17%) and other is 3%( K2O,Na2O,Fe2O3) ,  There is no crack after 10 times sudden heat and sudden cold at 1100℃⇌ 20℃,and no crack after 10 times using oxygen cutting gun to spray 1700-1800 flame on the crucible.



Physical Parameter

Item

Unit

Data

Max. Working Temperature

°C

1600°C

Volume Density

g/cm³

≥1.67

Apparent porosity

%

≤12.5

Cold Compressive Strength

MPa

≥57

Modulus of Rupture

MPa

≥22

Thermal Conductivity

W/(m·K) (20~1000°C)

0.8

Coefficient of Thermal Expansion

×10-6/K(20~800°C)

≤0.9



Below are the product dimensions:





Item

Capacity (gr.)

OD (mm)

Height (mm)

Fused silica crucible

XTL2

100

60

22

XTL5

250

67

24

XTL8

400

80

32

XTL10

500

86

36

XTL15

750

92

37

XTL20

1000

103

46

XTL30

1500

115

48

XTL50

2500

140

54

XTL100

5000

160

62

XTL200

10000

180

68









Product advantages:

  1. High in hardness, and pressure resistance is≥70MPa .
  2. High thermal shock resistance, low expansion coefficient, high heat stability .
  3. Working temperature is 1350°C , max working temperature is 1600°C .
  4. Long service life, is particularly suitable for thermal shock .





OUR SERVICE:

  • We will provide more precisely and efficiently manufacture and serve according to clients' drawings.
  • We have professional QC team to ensure your product more better.
  • Check the raw material before starting production.
  • Have the random inspection during the processing.
  • Make the 100% inspection before the shipments.



HIGH QUALITY:

Passed the ISO9001:2016 quality system authentication and SGS authentication.





OUR ADVANTAGE:

  • Free samples
  • Reasonable price with good quality
  • Professional manufacture in China
  • 7000 square meters new factory building
  • Automatic production line
  • Crucibles in stock

All prototype products have to go through 4 checks in the whole process:
1. Raw material inspection
2. In processing inspection
3. Final inspection
4. Outgoing inspection



FAQ

Q: How to start a project?

A: To start your project, please send us the design drawings with a list of material, quantity. Then, you will get the quotation from us within 24 hours.





Q: We’re not familiar with the international transport, will you handle all the logistic thing?

A: Definitely. Many years experience and long term cooperated forwarder will full support us on it. You can only inform us the delivery date, and then you will receive the goods at office/home. Other concerns leave to us.
